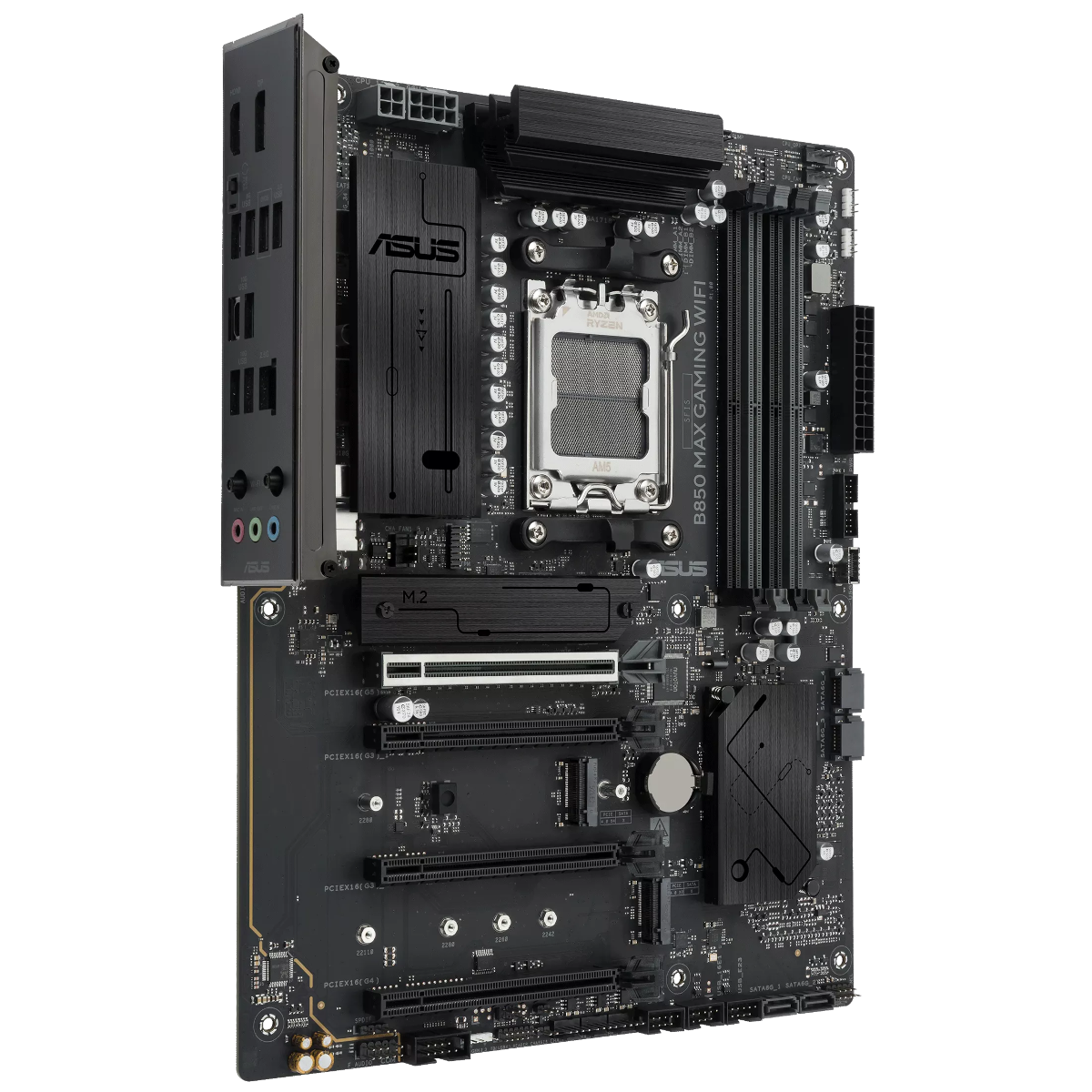

Specifikationer
Allmänt
Socket
AM5
Formfaktor
ATX
Kretstyp
B850 (AM5)
Kompatible processorer
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
WiFi
Ja
Bluetooth
Ja
Specifikationer
Wi-Fi 6E
Antal RAM-platser
4
RAM Teknik
DDR5
RAM
Ram Bus Clock
4x DIMM slots
8400+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors
9000+MT/s(OC)**/8600+MT/s(OC)*** with Ryzen™ 8000 Series Processors
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors
8400+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors
9000+MT/s(OC)**/8600+MT/s(OC)*** with Ryzen™ 8000 Series Processors
8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors
Max. RAM storlek
256 GB
Interface
Expansionskortplatser
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 3.0 x16 slots (support x1 mode)
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 3.0 x16 slots (support x1 mode)
Gränsflöde (lagring)
3 x M.2 slots (Key M)
4x SATA 6Gb/s ports
4x SATA 6Gb/s ports
Interna gränssnitt
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
1x USB 5Gbps connector (supports USB Type-C® )
1x USB 5Gbps
3x USB 2.0 headers support 6 additional USB 2.0 ports
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
1x USB 5Gbps connector (supports USB Type-C® )
1x USB 5Gbps
3x USB 2.0 headers support 6 additional USB 2.0 ports
Gränssnitt
4x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)
2x USB 5Gbps ports (2 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Wi-Fi module
1x Realtek® 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack
2x USB 5Gbps ports (2 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI™ port
1x Wi-Fi module
1x Realtek® 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack
Strömkontakter
1x 24-pin Main Power connector
1x 8-pin +12V CPU Power connector
1x 4-pin +12V CPU Power connector
1x 8-pin +12V CPU Power connector
1x 4-pin +12V CPU Power connector
Övrigt
Djup
30
Bredd
24
Tillbehör
2x SATA 6Gb/s cables
1x ASUS WiFi Q-Antenna
1x M.2 rubber packages
3x Screw packages for M.2 SSD
1x Quick start guide
1x ASUS WiFi Q-Antenna
1x M.2 rubber packages
3x Screw packages for M.2 SSD
1x Quick start guide
