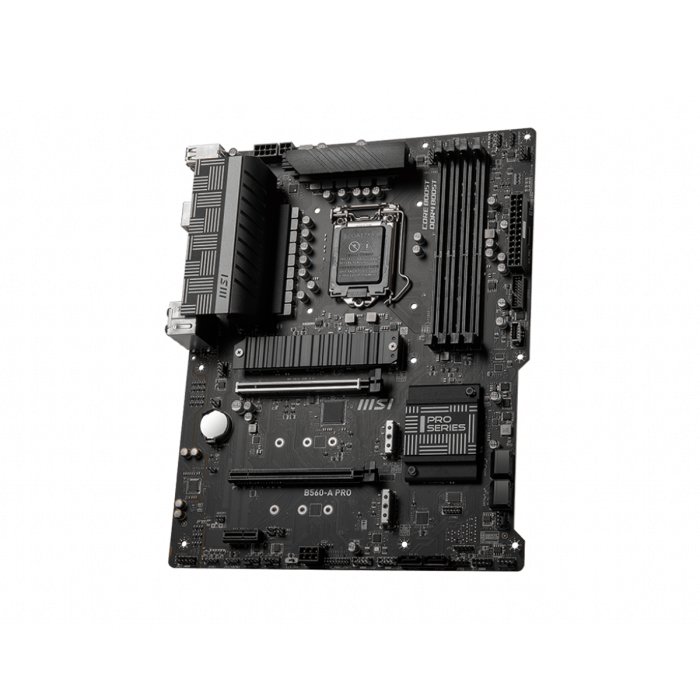

MSI B560 A PRO Bundkort
ATX, LGA1200
1 789 SEK
I lager
Specifikationer
Allmänt
Sokkel
LGA 1200
Formfaktor
ATX
Chipsæt
B560 (Intel 10+11th. gen)
Kompatible processorer
Supports 10th Gen Intel® Core™ Processors
11th Gen Intel® Core™ Processors
Pentium® Gold and Celeron® Processors
11th Gen Intel® Core™ Processors
Pentium® Gold and Celeron® Processors
WiFi
Nej
Antal RAM slots
4
RAM Teknologi
DDR4
RAM
Ram Bus Clock
5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
2x PCIe x16 slots
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E2 (from B560 chipset)
Supports up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E2 (from B560 chipset)
Supports up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot
Grænseflade (lagring)
6x SATA 6Gb/s ports
2x M.2 slots (Key M
1x M.2 slot (Available only on 11th Gen Intel® CPU)
2x M.2 slots (Key M
1x M.2 slot (Available only on 11th Gen Intel® CPU)
Interne interfaces
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
Interfaces
1x HDMI
1x DisplayPort
1x Optical S/PDIF OUT
1x LAN port
Audio connectors
4x USB 2.0
2x USB 3.2 Gen 1 5Gbps Type-A
2x USB 3.2 Gen 1 5Gbps Type-A
1x USB 3.2 Gen 2x2 20Gbps Type-C
1x DisplayPort
1x Optical S/PDIF OUT
1x LAN port
Audio connectors
4x USB 2.0
2x USB 3.2 Gen 1 5Gbps Type-A
2x USB 3.2 Gen 1 5Gbps Type-A
1x USB 3.2 Gen 2x2 20Gbps Type-C
Strømkontakter
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
Misc.
Dybde
24
Bredde
30
