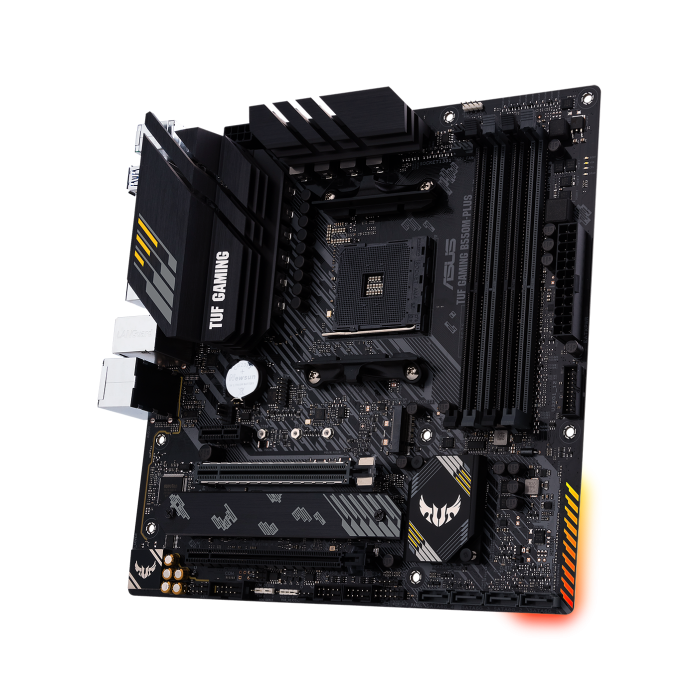

ASUS TUF GAMING B550M-PLUS Moderkort DEMO

BUNDKORT, ATX, AMD AM4
  • ASUS TUF GAMING B550M-PLUS Moderkort DEMO
  • ASUS TUF GAMING B550M-PLUS Moderkort DEMO
  • ASUS TUF GAMING B550M-PLUS Moderkort DEMO
  • ASUS TUF GAMING B550M-PLUS Moderkort DEMO

Ordinarie pris 1689 kr.

Special Price 1409 kr.

65 kr.
24 Månader

Resurs Bank - Part payment

På Lager

ASUS TUF GAMING B550M-PLUS Moderkort DEMO ASUS TUF GAMING B550M-PLUS Moderkort DEMO ASUS TUF GAMING B550M-PLUS Moderkort DEMO ASUS TUF GAMING B550M-PLUS Moderkort DEMO

Specifikationer

Allmänt
Socket AM4
Formfaktor M-ATX
Kretstyp B550 (AMD 3-5000 Series)
Kompatible processorer AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Ram
RAM Teknik DDR4
Ram Bus Clock 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)
3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133
Antal RAM-platser 4
Max. RAM storlek 128 GB
Expansionen
Expansionskortplatser 1 x PCIe 4.0/3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 ( x4 mode)
1 x PCIe 3.0 x1
Gränsflöde (lagring) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 (SATA & PCIE mode)
4 x SATA 6Gb/s port(s)
Interna gränssnitt 1 x CPU Fan connector
1 x CPU OPT Fan connector
2 x Chassis Fan connectors
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s
1 x USB 3.2 Gen 1 Header
2 x USB 2.0 Header

1 x SPI TPM header
1 x Front panel audio connector
Gränssnitt 1 x PS/2 keyboard/mouse combo port
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
2 x USB 2.0 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
1 x Optical
Strömkontakter 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors
Diverse
Bredd 395 mm
Djup 244 mm



Mer information

Ekstern beskrivelse (URL) https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/
Specifications Widget

Specifikationer

Allmänt
Socket AM4
Formfaktor M-ATX
Kretstyp B550 (AMD 3-5000 Series)
Kompatible processorer AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Ram
RAM Teknik DDR4
Ram Bus Clock 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)
3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133
Antal RAM-platser 4
Max. RAM storlek 128 GB
Expansionen
Expansionskortplatser 1 x PCIe 4.0/3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 ( x4 mode)
1 x PCIe 3.0 x1
Gränsflöde (lagring) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 (SATA & PCIE mode)
4 x SATA 6Gb/s port(s)
Interna gränssnitt 1 x CPU Fan connector
1 x CPU OPT Fan connector
2 x Chassis Fan connectors
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s
1 x USB 3.2 Gen 1 Header
2 x USB 2.0 Header

1 x SPI TPM header
1 x Front panel audio connector
Gränssnitt 1 x PS/2 keyboard/mouse combo port
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
2 x USB 2.0 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
1 x Optical
Strömkontakter 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors
Diverse
Bredd 395 mm
Djup 244 mm

Mobile product description Nej
Mobile product banner Nej
Product Series Not applicable
Artikelnummer 90MB14A0-M0EAY0-DEMO
Gear baggrundsfarve Hvid
Delivery time Nej
Lagerstatus color Nej
Demo product? Ja
