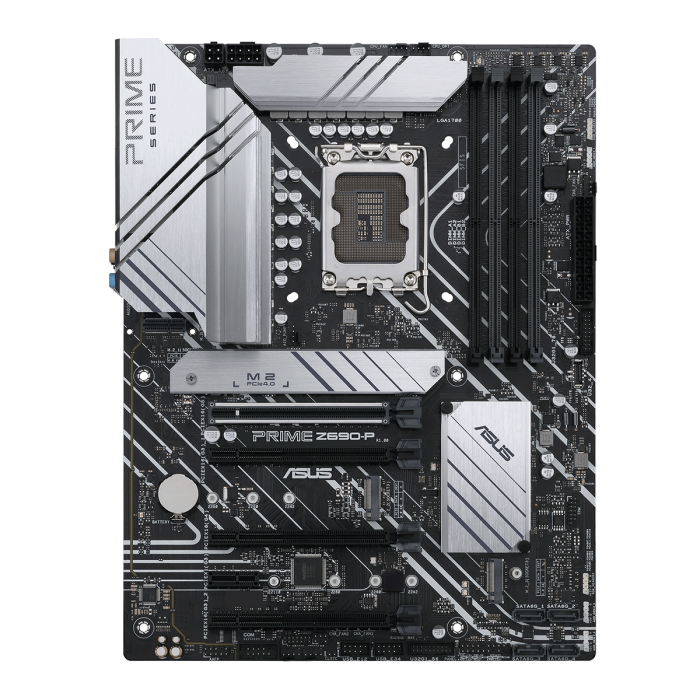

ASUS PRIME Z690-P DDR5 Moderkort
ATX, LG1700, DDR5
2 499 SEK
I lager
Specifikationer
Allmänt
Sokkel
LGA 1700
Formfaktor
ATX
Chipsæt
Z690 (Intel 12+13th. gen)
Kompatible processorer
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
WiFi
Nej
Antal RAM slots
4
RAM Teknologi
DDR5
RAM
Ram Bus Clock
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
1 x PCIe 5.0/4.0/3.0 x16 slot
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Grænseflade (lagring)
1 x M.2_1 slot (Key M), type 2242/2260/2280/22110
1 x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
1 x M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
1 x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
1 x M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Interne interfaces
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x USB 3.2 Gen 1 headers (Type C)
2 x USB 3.2 Gen 1 headers
2 x USB 2.0 headers
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x USB 3.2 Gen 1 headers (Type C)
2 x USB 3.2 Gen 1 headers
2 x USB 2.0 headers
Interfaces
1 x USB 3.2 Gen (Type-C)
1 x USB 3.2 Gen(Type-A)
2 x USB 3.2 Gen 1(Type-A)
2 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical out
1 x USB 3.2 Gen(Type-A)
2 x USB 3.2 Gen 1(Type-A)
2 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical out
Strømkontakter
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Misc.
Dybde
234
Bredde
305
Tilbehør
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
1 x Support DVD
1 x User guide
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
1 x Support DVD
1 x User guide
