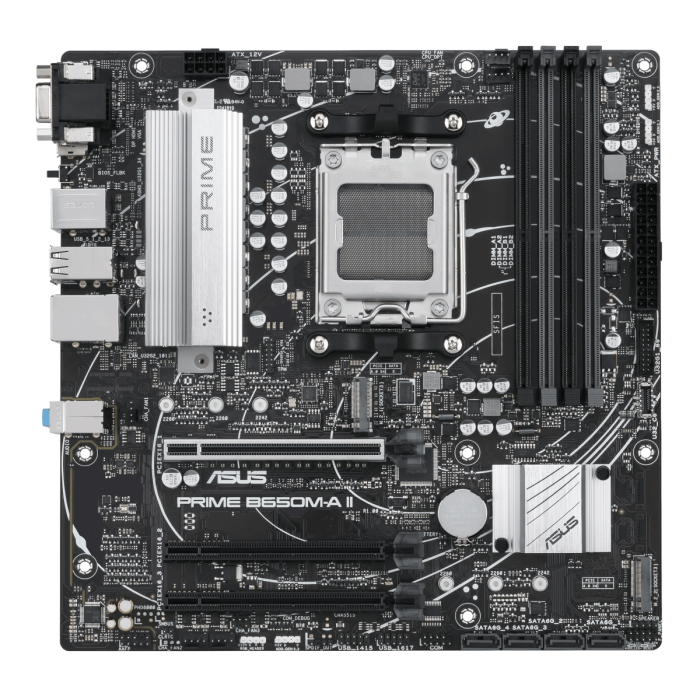

ASUS PRIME B650m-A II Moderkort
2 149 SEK
I lager
Specifikationer
Allmänt
Sokkel
AM5
Formfaktor
M-ATX
Chipsæt
B650 (AMD 7000)
Kompatible processorer
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
WiFi
Nej
Antal RAM slots
4
RAM Teknologi
DDR5
RAM
Ram Bus Clock
6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
1 x PCIe 4.0 x16 slot (supports x16 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Grænseflade (lagring)
1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Interne interfaces
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
1 x USB 3.2 Gen 1 connector (USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1
2 x USB 2.0 headers
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
1 x USB 3.2 Gen 1 connector (USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1
2 x USB 2.0 headers
Interfaces
2 x USB 3.2 Gen 2 ports (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI®
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™
1 x PS/2 Keyboard/Mouse
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI®
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack™
1 x PS/2 Keyboard/Mouse
Strømkontakter
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Misc.
Dybde
24
Bredde
24
Tilbehør
2 x SATA 6Gb/s cables
1 x I/O Shield 1 x Screw Package for M.2 SSD
1 x User guide
1 x I/O Shield 1 x Screw Package for M.2 SSD
1 x User guide
