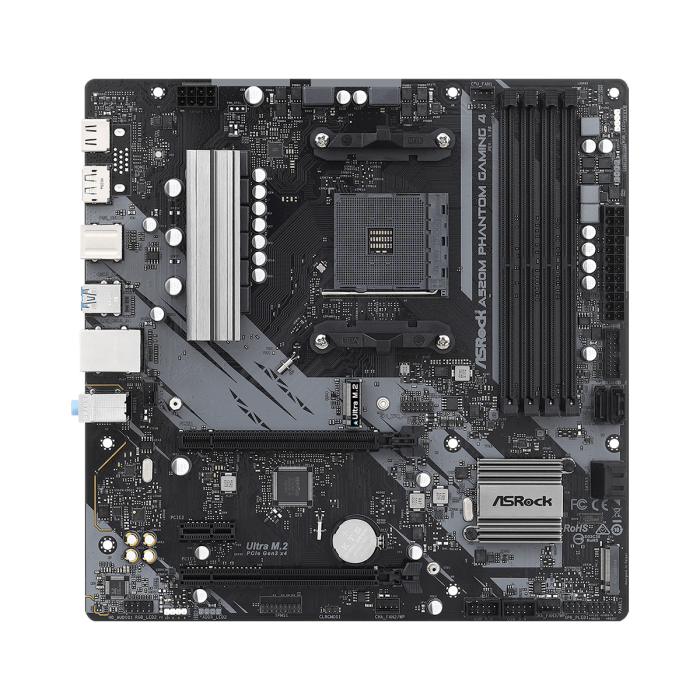

ASRock A520M PHANTOM GAMING 4 Moderkort
USB 3.2, PCIe 3.0 x 16
999 SEK
Få i lager
Specifikationer
Allmänt
Sokkel
AM4
Formfaktor
M-ATX
Chipsæt
A520 (AMD 3-5000 series)
Kompatible processorer
Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
WiFi
Nej
Antal RAM slots
4
RAM Teknologi
DDR4
RAM
Ram Bus Clock
4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC)
3200 / 2933 / 2667 / 2400 / 2133 ECC
3200 / 2933 / 2667 / 2400 / 2133 ECC
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
2x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE3: x2 mode)*
1x PCI Express 3.0 x1 Slot
1x PCI Express 3.0 x1 Slot
Grænseflade (lagring)
4x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10
1x Ultra M.2 Socket
1x M.2 Socket
1x Ultra M.2 Socket
1x M.2 Socket
Interne interfaces
1x SPI TPM Header
1x Power LED and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
3x Chassis/Water Pump Fan Connectors
1x Front Panel Audio Connector
2x USB 2.0 Headers
1x USB 3.2 Gen1 Hea
1x Power LED and Speaker Header
2x RGB LED Headers
2x Addressable LED Headers
1x CPU Fan Connector (4-pin)
3x Chassis/Water Pump Fan Connectors
1x Front Panel Audio Connector
2x USB 2.0 Headers
1x USB 3.2 Gen1 Hea
Interfaces
1x PS/2 Mouse/Keyboard Port
1x HDMI Port
1x DisplayPort 1.4
4x USB 3.2 Gen1 Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port with LED
1x HD Audio Jacks: Line in / Front Speaker / Microphone
1x HDMI Port
1x DisplayPort 1.4
4x USB 3.2 Gen1 Ports
2x USB 2.0 Ports
1x RJ-45 LAN Port with LED
1x HD Audio Jacks: Line in / Front Speaker / Microphone
Strømkontakter
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x 8 pin 12V Power Connector
Misc.
Dybde
24
Bredde
24
